FL2-100: 4 1/2″ Surface Mount High Security Triple Bias BMS , UL Standard 634 Level II

Name: FL2-100: 4 1/2″ Surface Mount High Security Triple Bias BMS , UL Standard 634 Level II
SKU: 28610
Availability: InStock

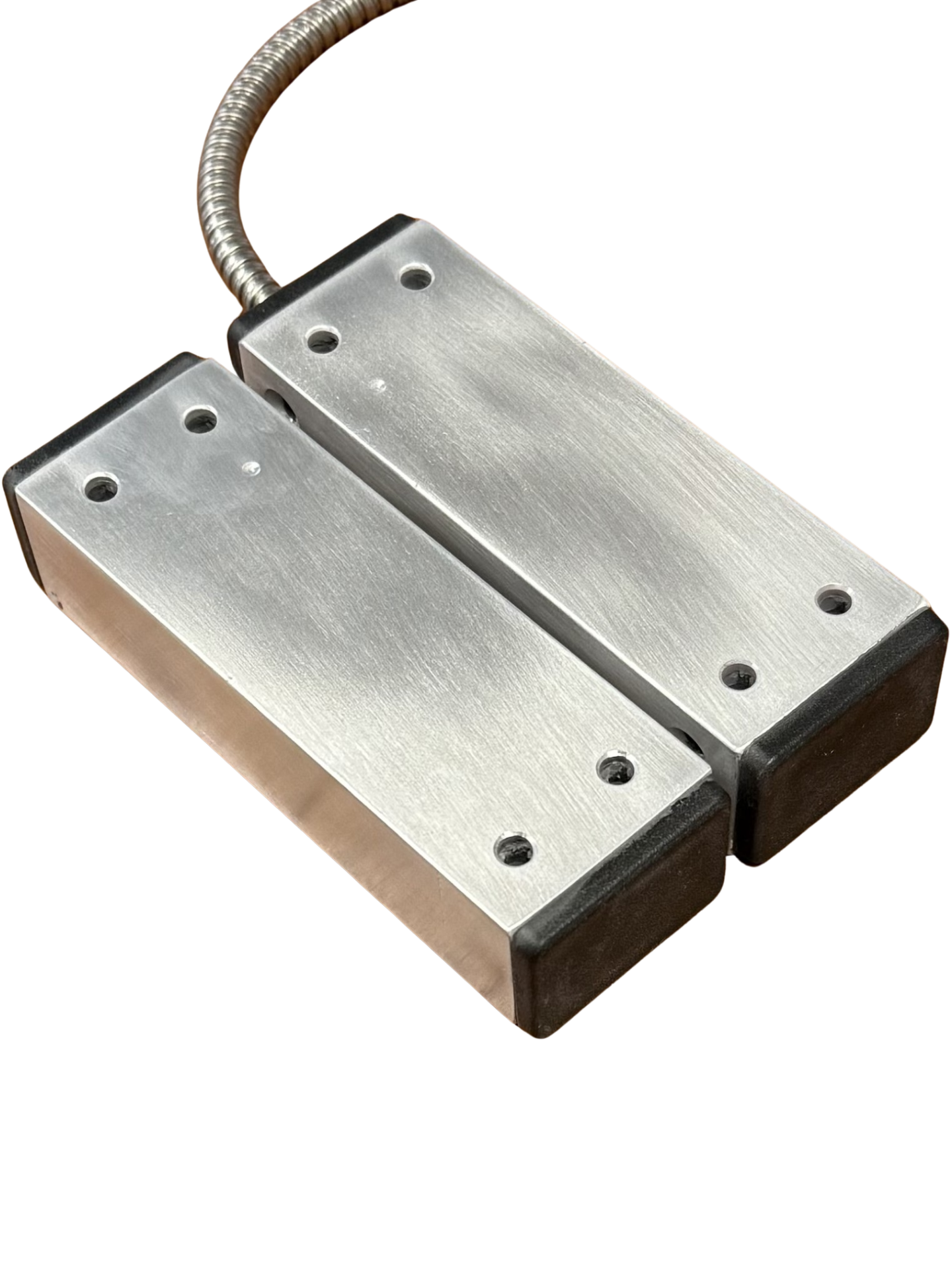

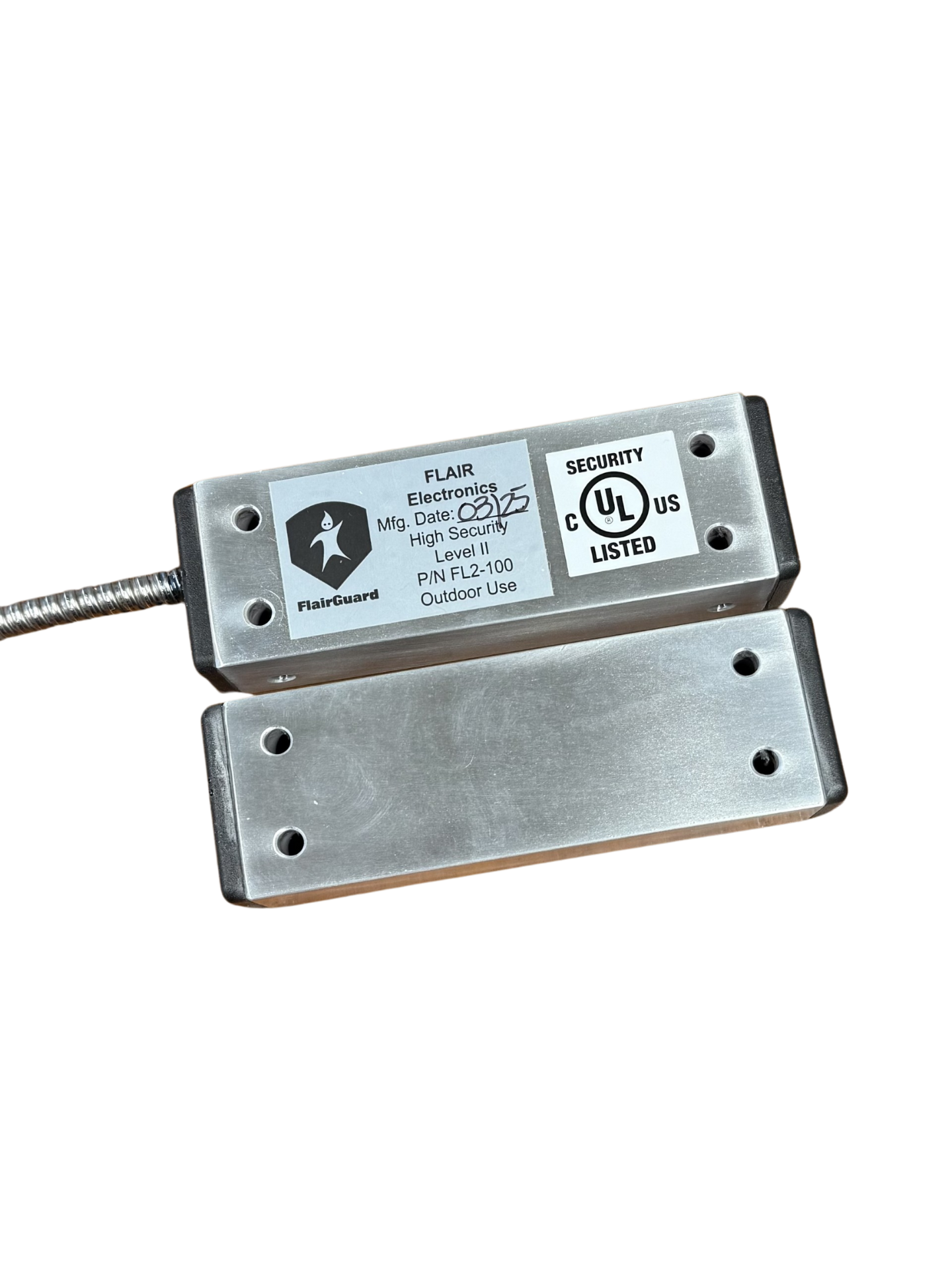

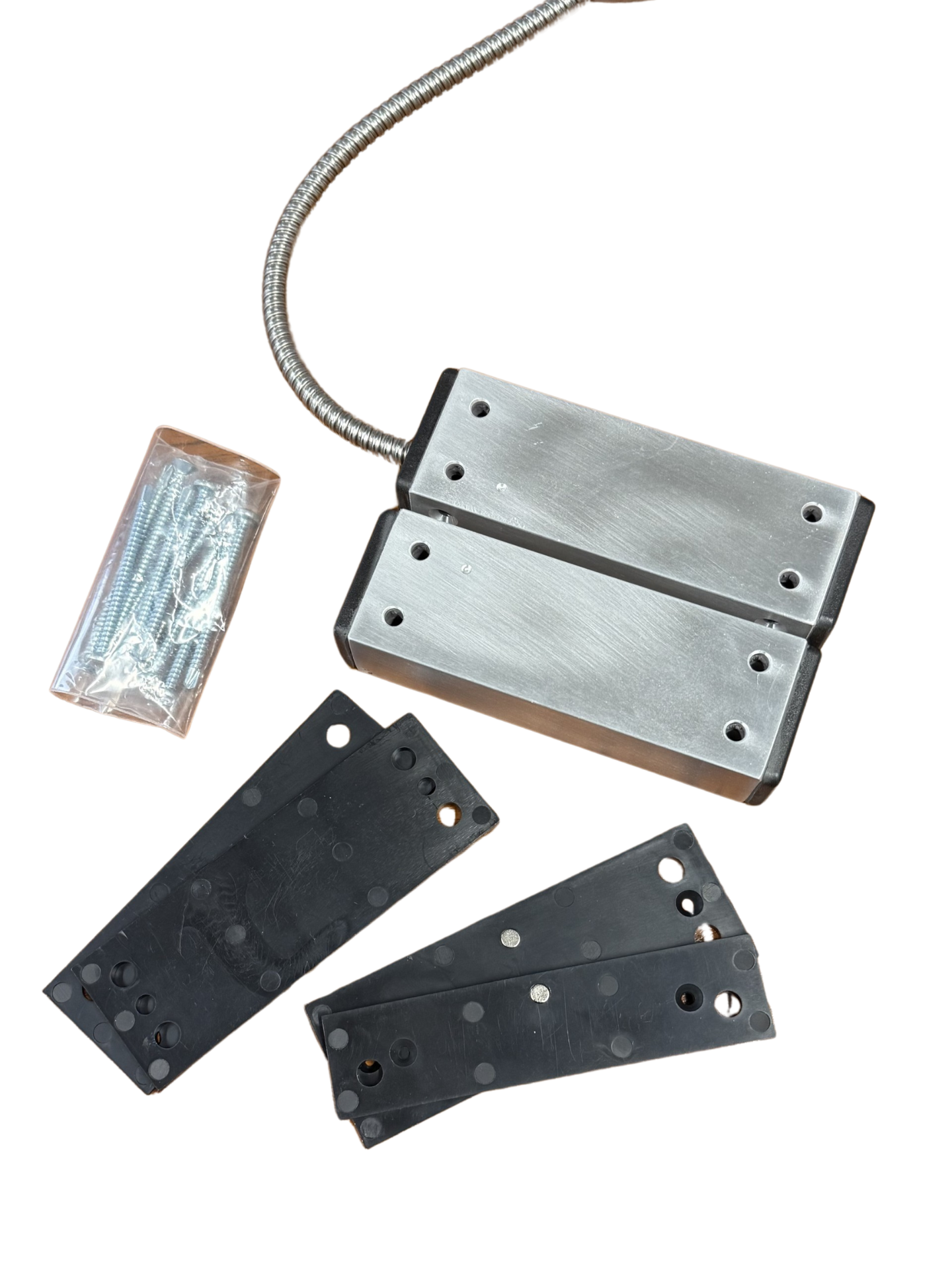

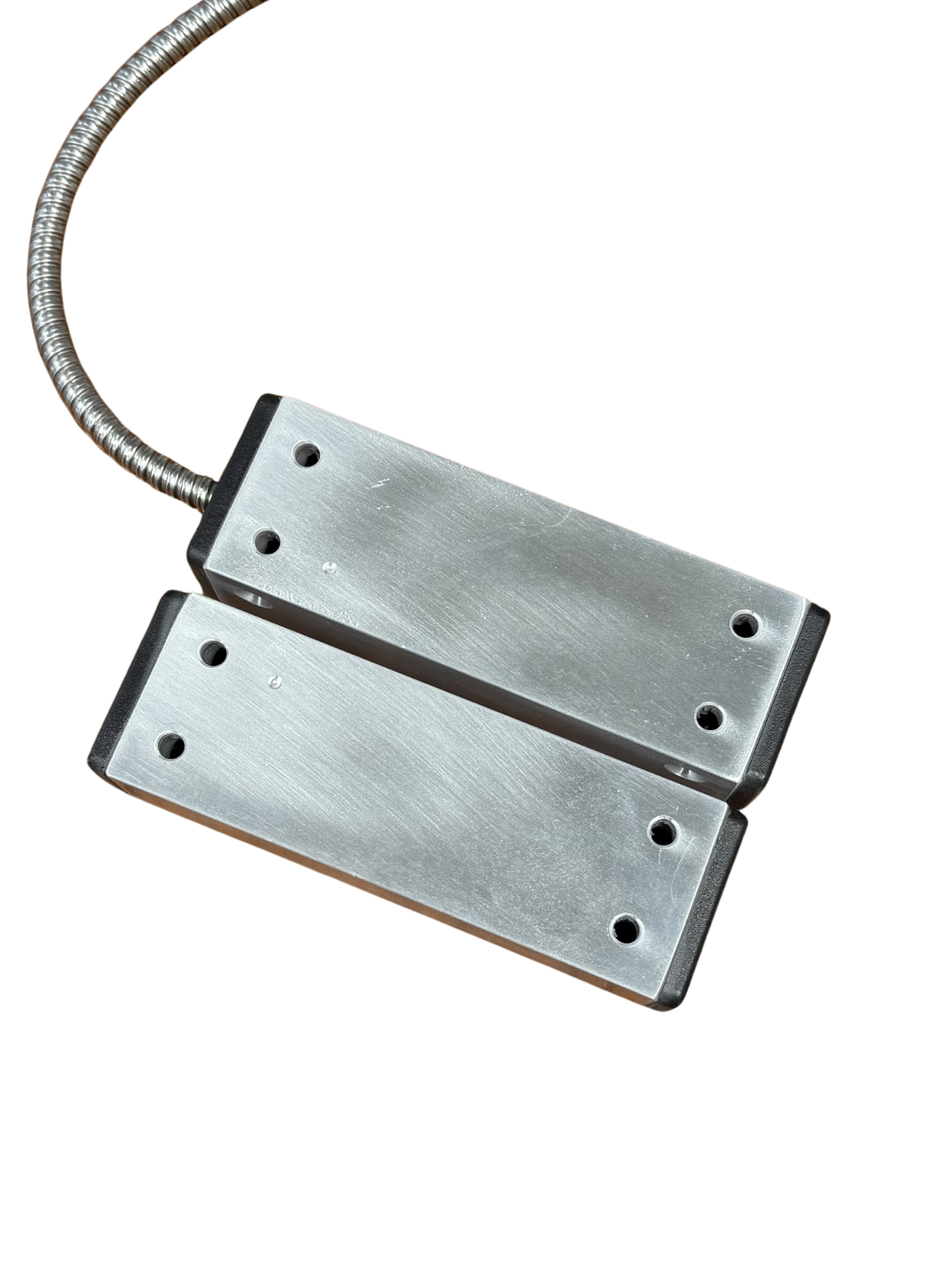

The Model FL2-100 High Security Surface Mount Magnetic Contact is a SPDT switch with Triple Bias reeds. This magnetic contact is UL Listed to Standard 634 Level II and is part of the FlairGuard line of high security products. It comes with a magnetic and pry tamper loop which will trigger the alarm if an external magnet is used to try to defeat the switch or the switch is removed from the door. There are six color coded wires. Impossible to defeat, the FL2-100 BMS will protect your most sensitive rooms and buildings.

FEATURES:

FlairGuard Biased Balanced Magnetic Switch
Surface Mount Switch and Magnet
36” Armored Cable, #22 AWG Wire Leads
Magnetic Tamper and Pry Tamper
Aluminum Case with Urethane Potting for maximum resistance to harsh environments
Lifetime Warranty
UL Listed Standard 634, Level II

Specifications

Part Number	FL2-100
Circuit Configuration	High Security Triple Bias BMS
Color	Brushed Aluminum
Custom Options	Call for custom options such as longer length armored cable and wire, resistors or other requirements
Details	Urethane potted for maximum protection of electrical components and resistance to harsh environment
Electrical Rating	Maximum 30 VDC, 20 ma, 3 W
Gap	Operational Gap is 1/4", Recommended Set-Up Gap is 1/16"
Lead Length	48″ #22 AWG Wire Leads, 36″ Armored Cable
Loop Type (with magnet present)	SPDT Door Position Switch, Normally Closed Magnetic and Pry Tamper
Mounting	Surface Mount, Four Screws each Switch and Magnet
Size	4.50″ L x 1.50″ W x 1.00″ D
UL Rating	UL Standard 634, Level II
Warranty	Lifetime Warranty
Weight	8 ounces

Downloads

FL2-100: High Security Triple Bias BMS, UL Std 634 Level II

1 file(s) 124.88 KB

Download

FL2-100: High Security Triple Bias BMS, UL Std 634 Level II, Instructions

1 file(s) 374.17 KB
