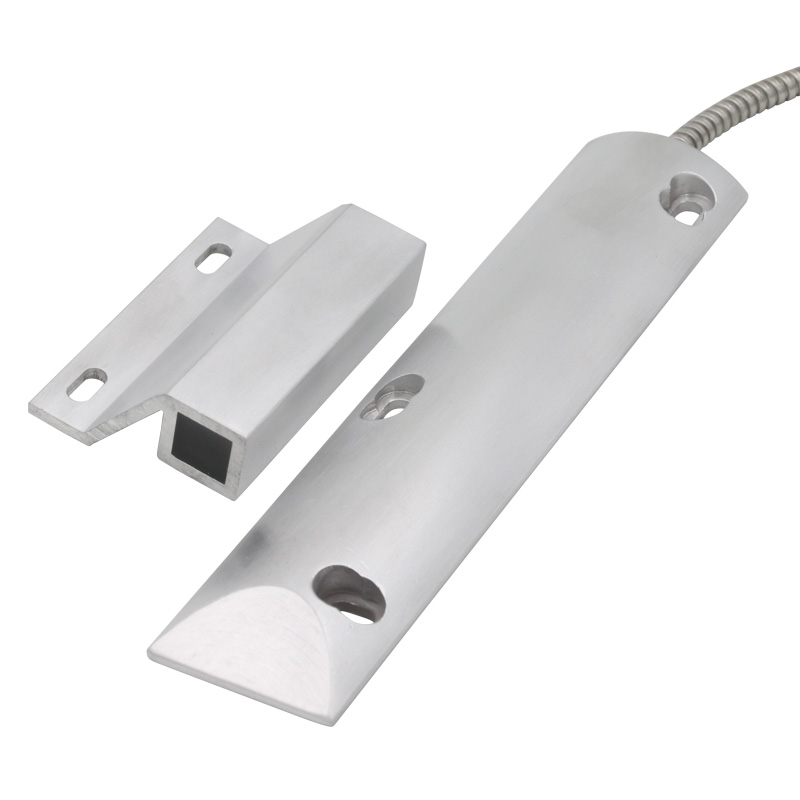

1000-38Z, 1000-36Z: 8″ Overhead Door Magnetic Contact Series

1000-38Z, 1000-36Z: 8″ Overhead Door Magnetic Contact Series

Overhead Door Magnetic Contacts come standard in NC, NO, and SPDT electrical configurations. Standard wide gap is 3″ and several mounting options include floor or rail bracket.



  • Specifications

    Part Number

    1000-38Z, 1000-36Z

    Color

    Solid Aluminum Case

    Electrical Rating

    1000-38Z: Maximum 100 VDC, 50 ma., 10 W, 1000-36Z: Maximum 30 VDC, 20 ma., 3 W

    Gap

    3″

    Lead Length

    18″ Armored Cable

    Loop Type (with magnet present)

    1000-38Z: Normally Closed, 1000-36Z: SPDT

    Size

    8″ L x 1 3/4″ W x 1/2″ H



    Downloads

    Icon

    1000-38Z Data Sheet

    1 file(s) 48.59 KB
    Download
